Product details of the infrared light panel
Product Information
The distinctive design of Sunsred infrared light panel comes from our professional design team. The product has to go through rigorous testing procedures which are conducted by our testing personnel before delivery. They are responsive to make sure that quality is consistently at its best. Shenzhen Sunsred Technology CO.,Ltd can ensure the fastest and most accurate delivery date for infrared light panel.
Proudct specification
LEDs: 50% Red and 50% Near Infrared (NIR)
LED QTY: 320PCS
LED Peak Wavelengths: 630nm, 660nm, 810nm,830nm,850nm
Net Weight: 11KG
Beam Angle: 30 degree
Irradiance: >180 @ 6"
Warranty: 3 Years
pulsed : 1-200Hz free adjust
dImmer: 3 Level
Timer: 1-30mins free adjust
Universal Stand and Floor Stand sold separately.
what's included
- 1 x Remote Control
- 1 x Power Cable
- 1 x Detailed User Manual
- 1 x Protective Goggles
- 1 x Daisy Chain
- 1 x A320 Panel
- 1x adjustable door hook
- 1 x pulley system
- 1 x screw driver
- 2 x hanging wire
More dETAILS
Smart control panel with remote controller
wilreless modular design easy combo to different size of panel system
Pulse and dimmer function meet 90% client demand
Hanging method
Floor Stand easy moving around
Door or Wall Mounted, Convenient install at Home
Vertical & Horizontal stand meet solan or clinic use
Compare Models

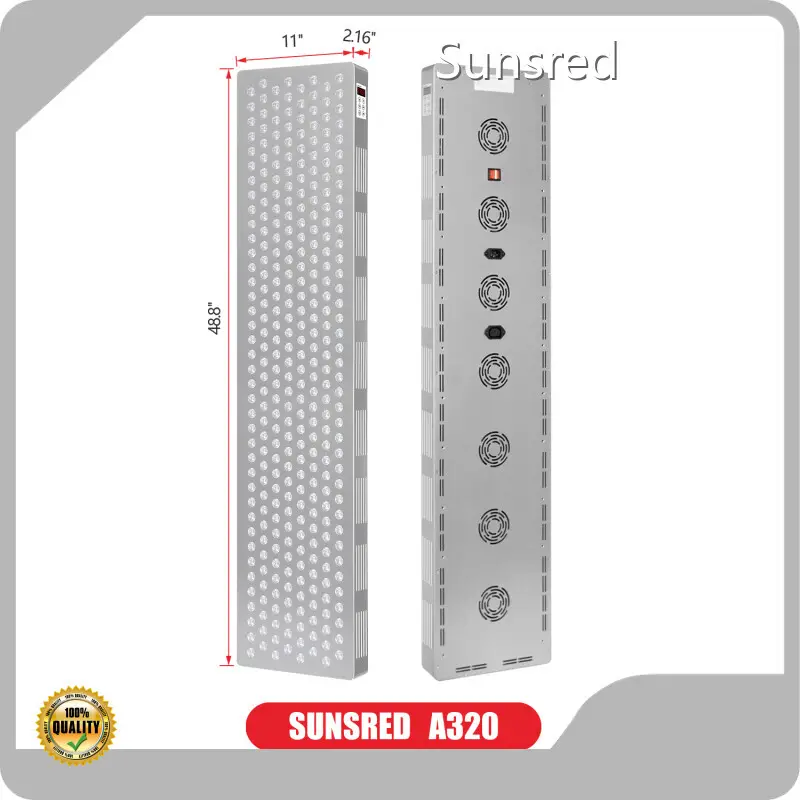

| Model No. | a80 | a160 | a240 | a320 | a400 |
| Dimensions | 13.4"x11"x2.16" | 25.2"x11"x2.16" | 37"x11"x2.16" | 48.8"x11"x2.16" | 60.6"x11"x2.16" |
| New Weight | 3.55KG | 5.65KG | 7.5KG | 11KG | 14KG |
| Wavelength | 630 660 810 830 850 | 630 660 810 830 850 | 630 660 810 830 850 | 630 660 810 830 850 | 630 660 810 830 850 |
| Power | 400w | 800w | 1200w | 1600w | 2000w |
| Actual Power | 138w | 288w | 408W | 588W | 680W |
| LED Qty | 80 PCS | 160 PCS | 240 PCS | 320 PCS | 400 PCS |
| Beam Angle | 30 degree | 30 degree | 30 degree | 30 degree | 30 degree |
| Irradiance | >180 @ 6" | >180 @ 6" | >180 @ 6" | >180 @ 6" | >180 @ 6" |
| EMF | 0.05uT @ 6" | 0.05uT @ 6" | 0.05uT @ 6" | 0.05uT @ 6" | 0.05uT @ 6" |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
| Remote control | √ | √ | √ | √ | √ |
| Door mount | √ | √ | √ | √ | √ |
| WIFI Modular | √ | √ | √ | √ | √ |
cUSTOMIZE SERVICES
Stick to make qualified led light therapy panel
paint with high quality silver color
customize logo: MOQ 50PCS
Customize color: white, black, red, green, yewllow
customize shape; Depends on the draft
Meet virous need to customize spectrum
regular with 5 wavelength : 630nm 660nm 810nm 830nm & 850nm
Customize Wavelength range from 385nm- 1070nm
sTRICT QUALITY CONTROL
Lamp Bead Appearance Inspection
Spectrum Test Inspection & Report
Auto-Lamp Bead Patch
PCB Board Insection
Professional Workers
4hrs Aging Testing
QC Inspection
Packing & Delivery
